Low Profile Electric Pallet Lift Tables


FREE DELIVERY to Bris, Syd & Melb Metro

Include GST

Quantity Image SKU / Description Price

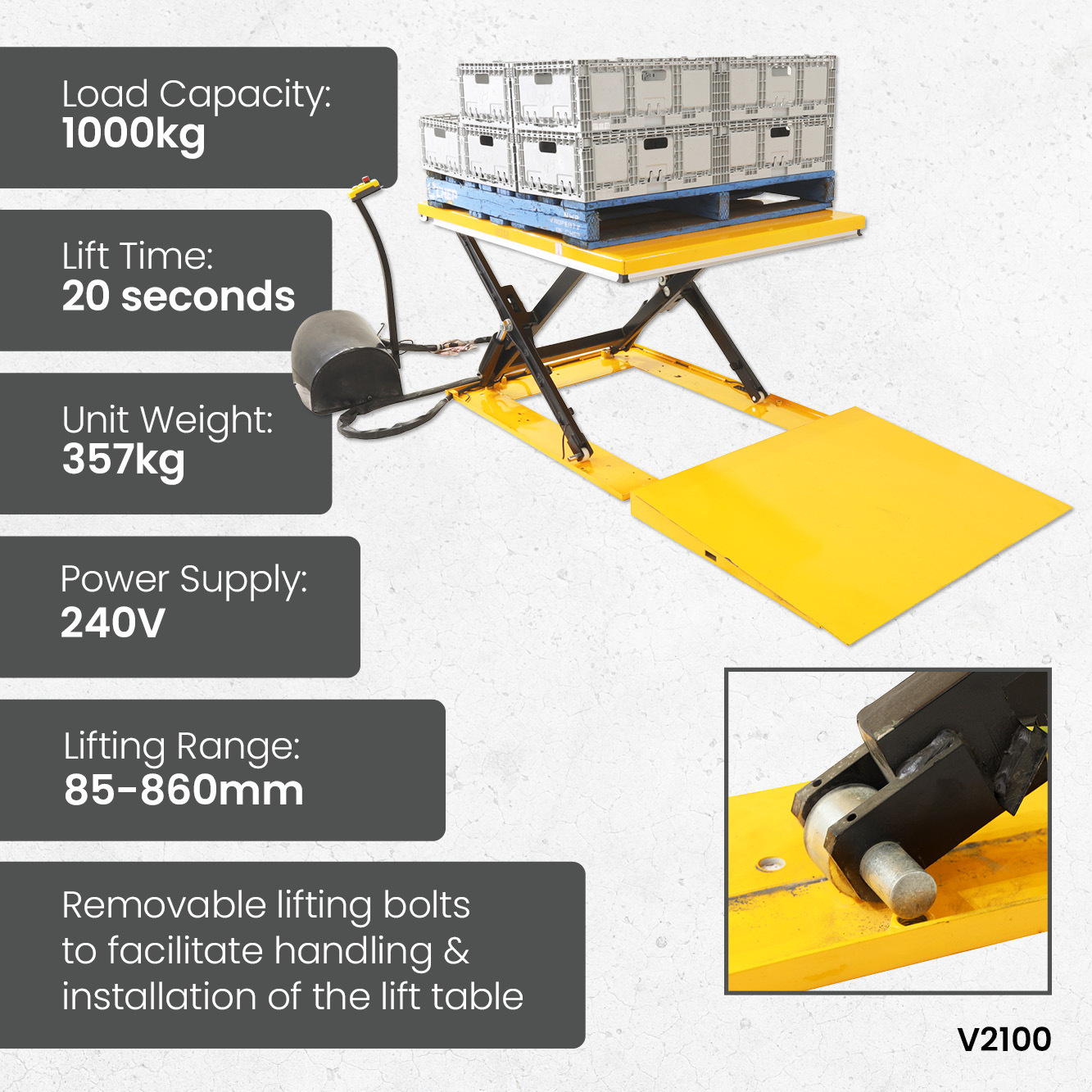

SKU: V2100

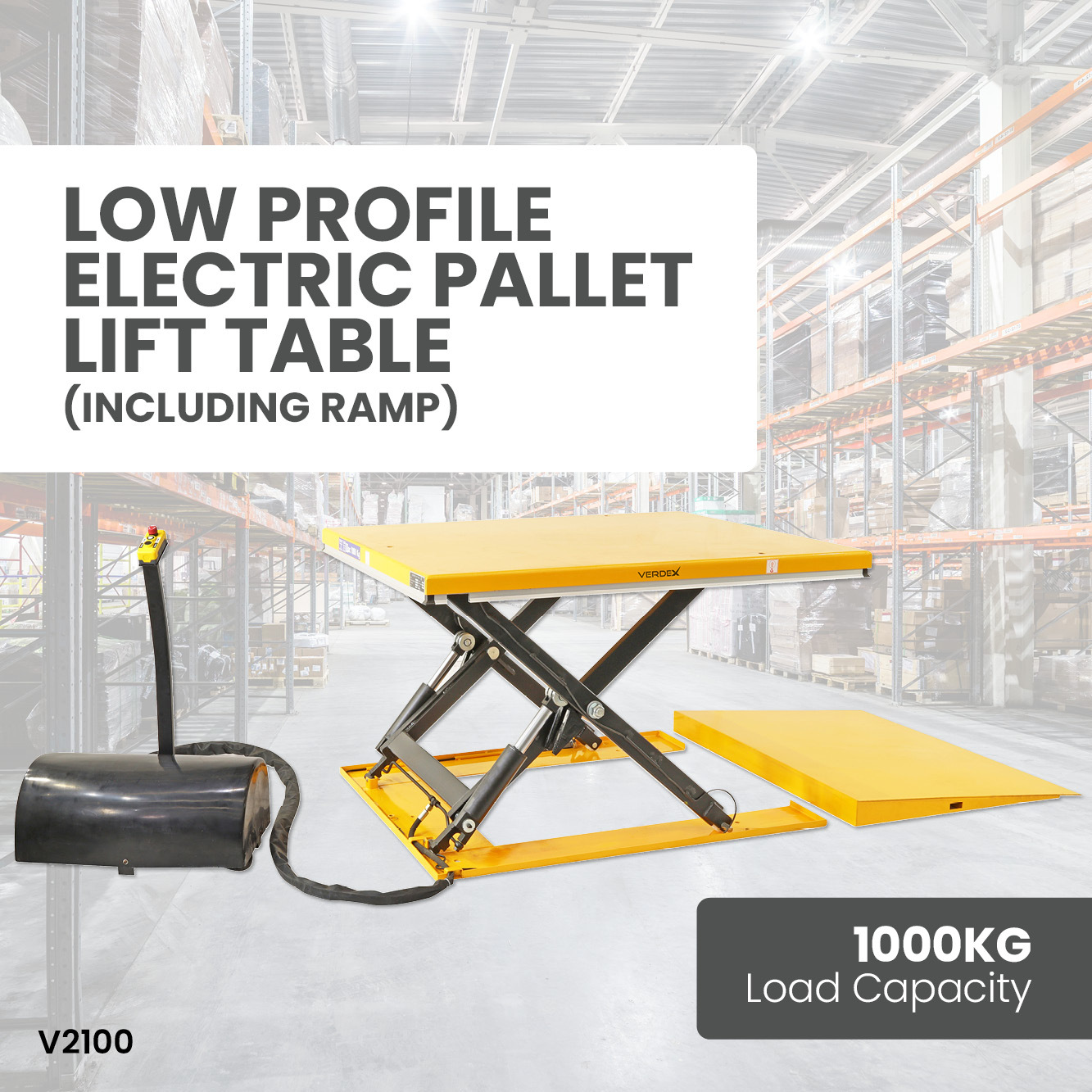

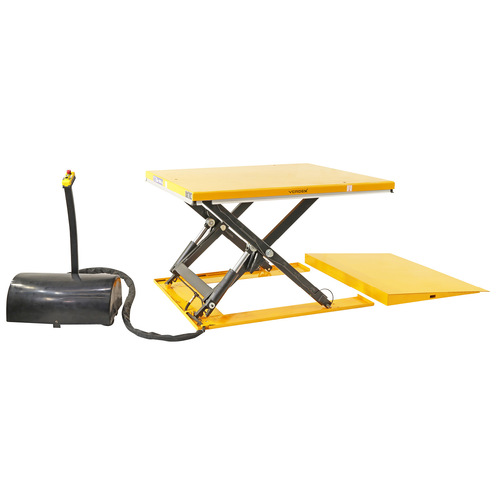

Low Profile Lift Table (including ramp) 1000kg
$5,750.00
/Each
In stock
SKU: V2101

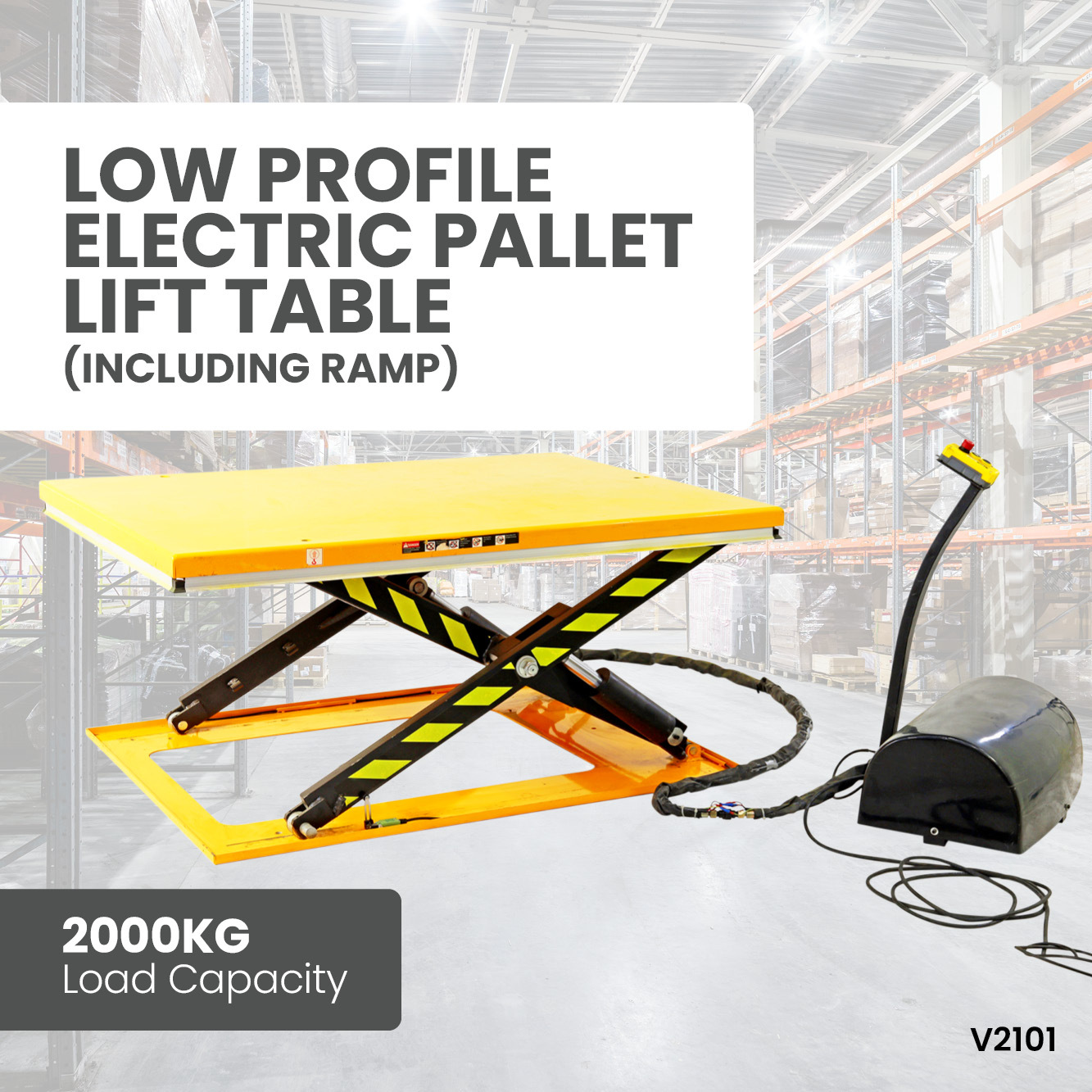

Low Profile Lift Table (including ramp) 2000kg
$6,792.00
/Each
In stock

Use toggle to show prices including GST

Add Selection to Cart

Low Profile Electric Pallet Lift Tables


  • Many applications require the regular loading and unloading of palletised goods.
  • Repetitive lifting and stretching can be time consuming and hazardous.
  • Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.

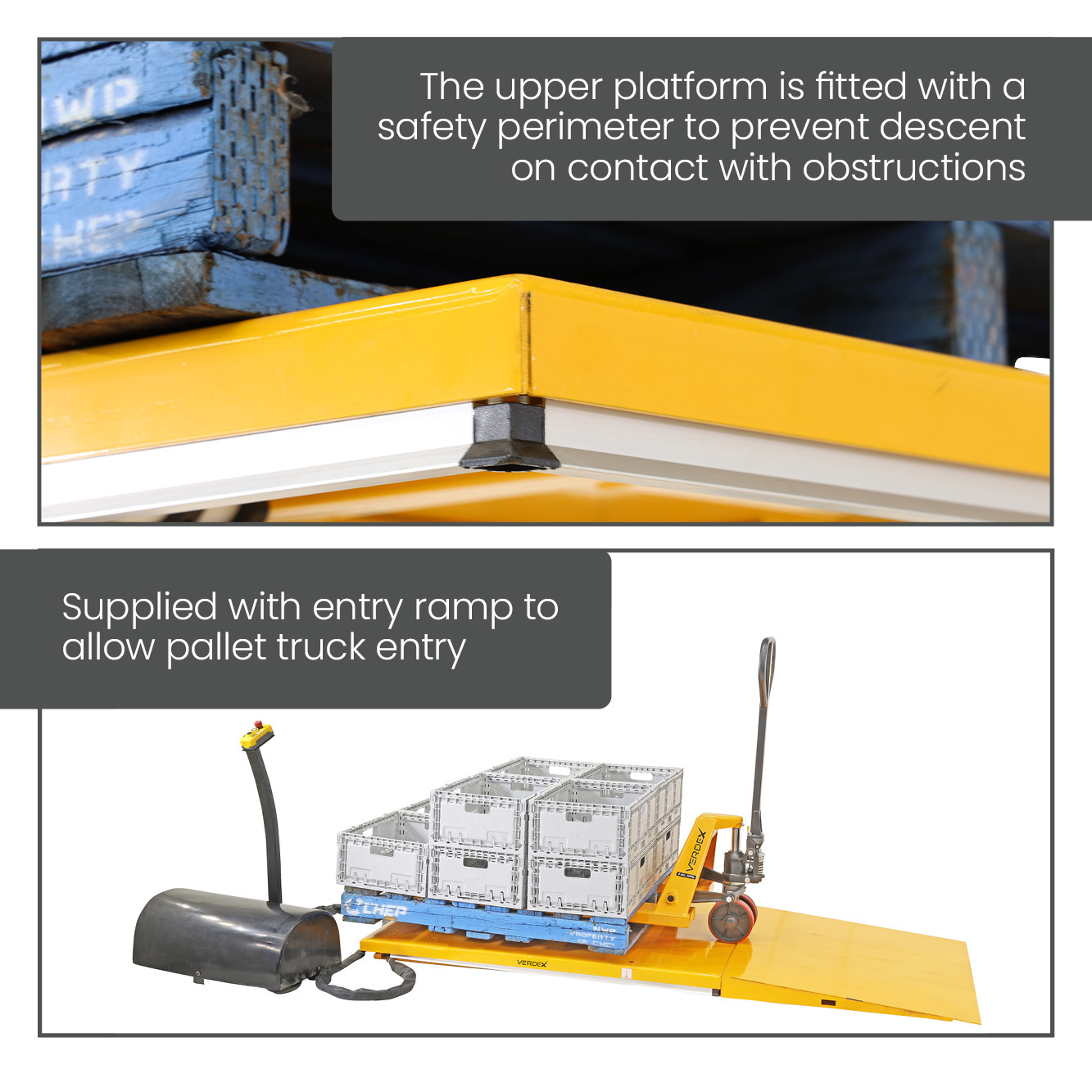

  • Supplied with entry ramp to allow pallet truck entry
  • Powder coated finish
  • Can be supplied with optional rotator ring/rotating turntable

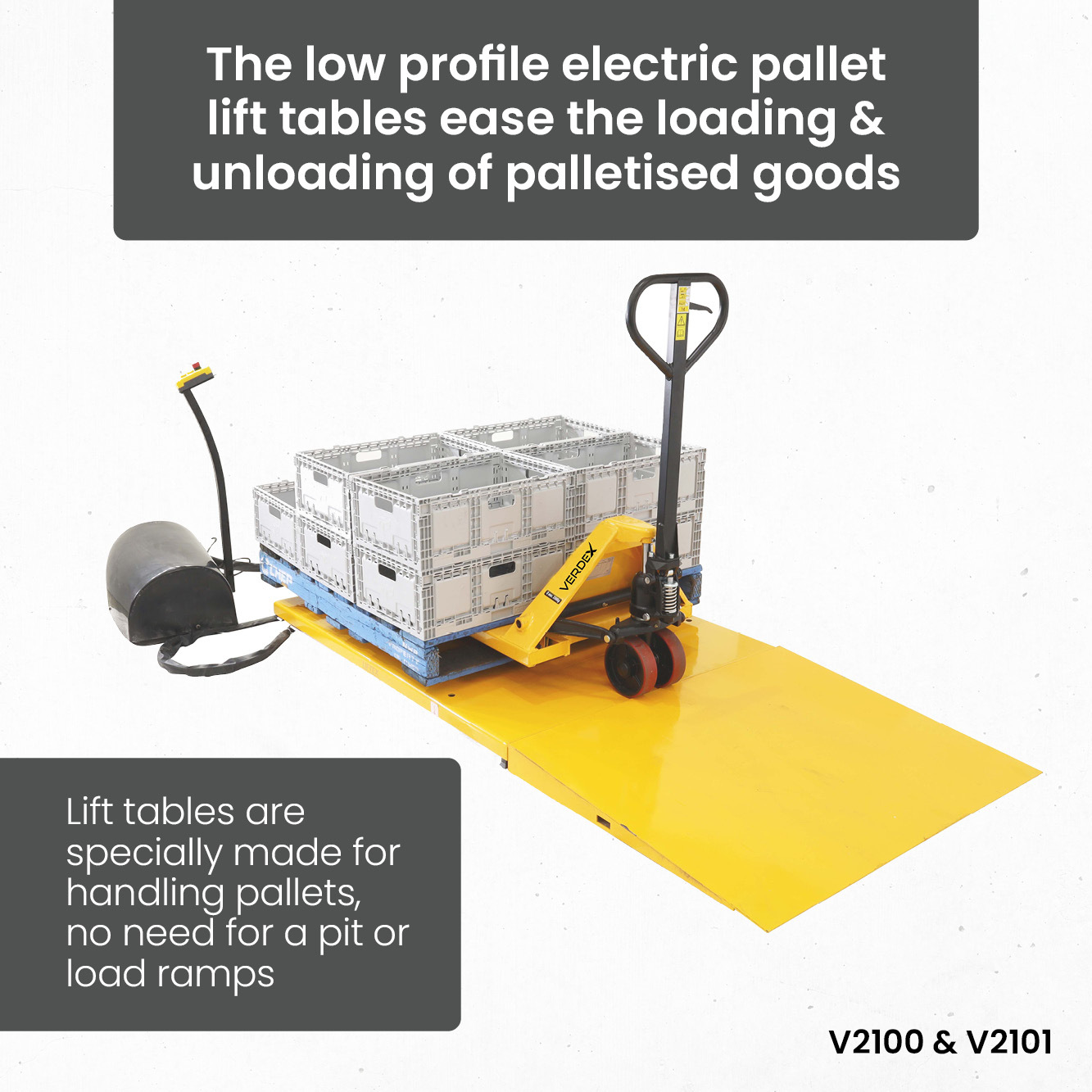

  • Tables are specially made for handling pallets, no need for a pit or load ramps
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions

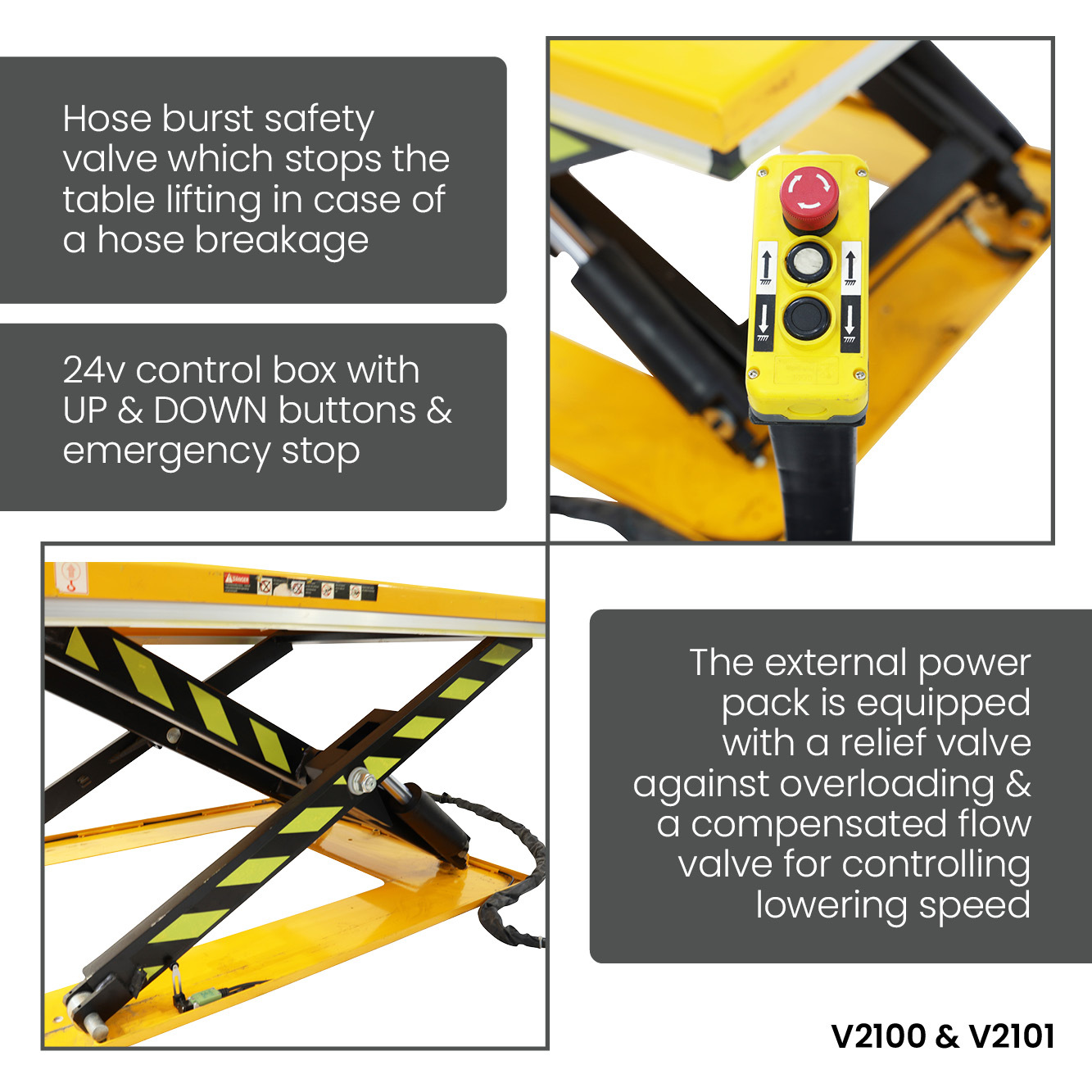

  • 24v control box with UP and DOWN buttons and emergency stop
  • External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
  • Power Supply: 240v (3 phase 415v available if required)
  • Hose burst safety valve to stop the lift table lowering in case of hose breakage

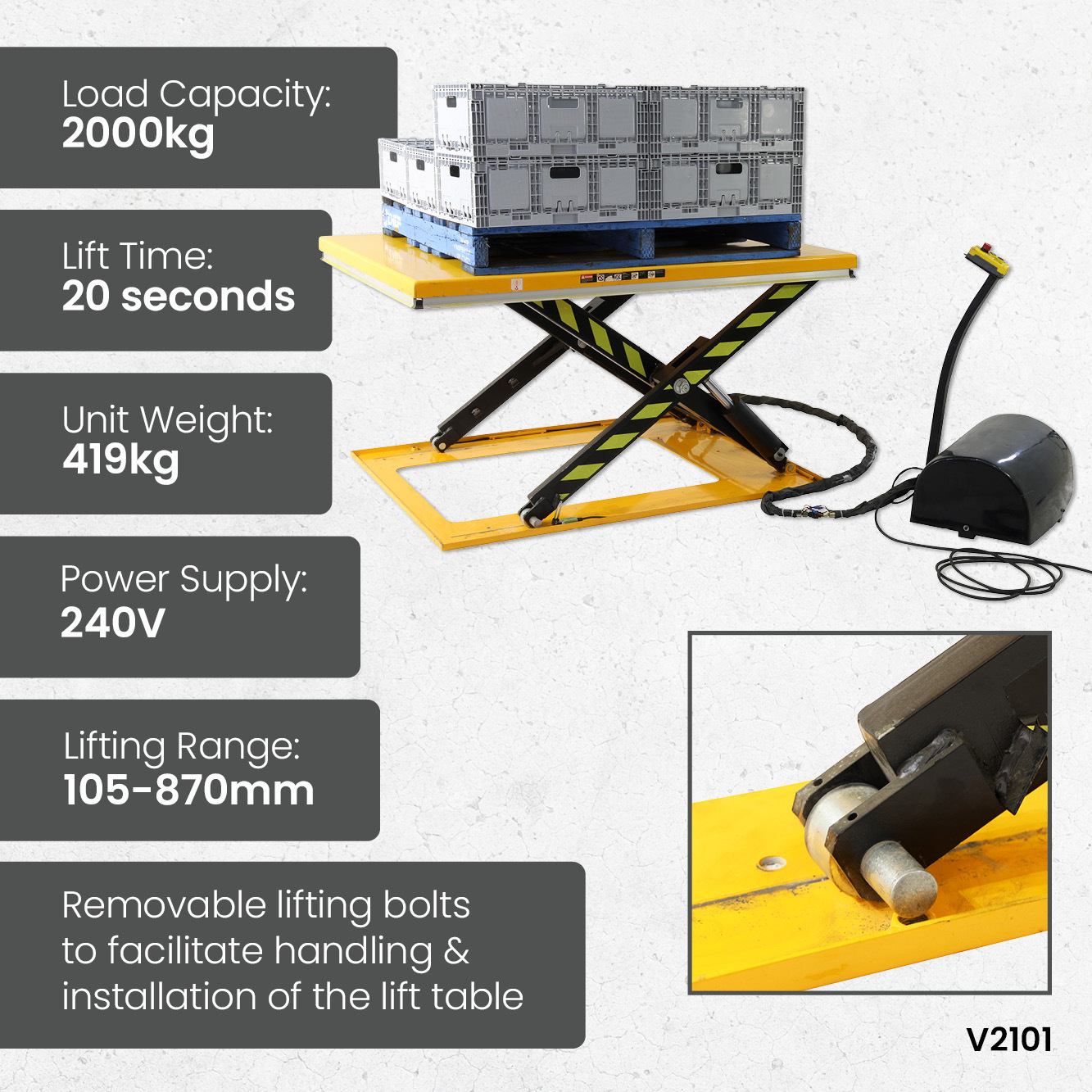

  • Removable lifting bolts to facilitate handling and installation of the lift table
  • Oil-less bushings on pivot points
  • Lifting Time: 25 seconds
  • Unit Weight: 234kg

To purchase the optional Rotator Ring Turntable, click here

Code
Load Capacity
Platform Size (LxW)
Lifting Range
Lift Time
 Unit Weight

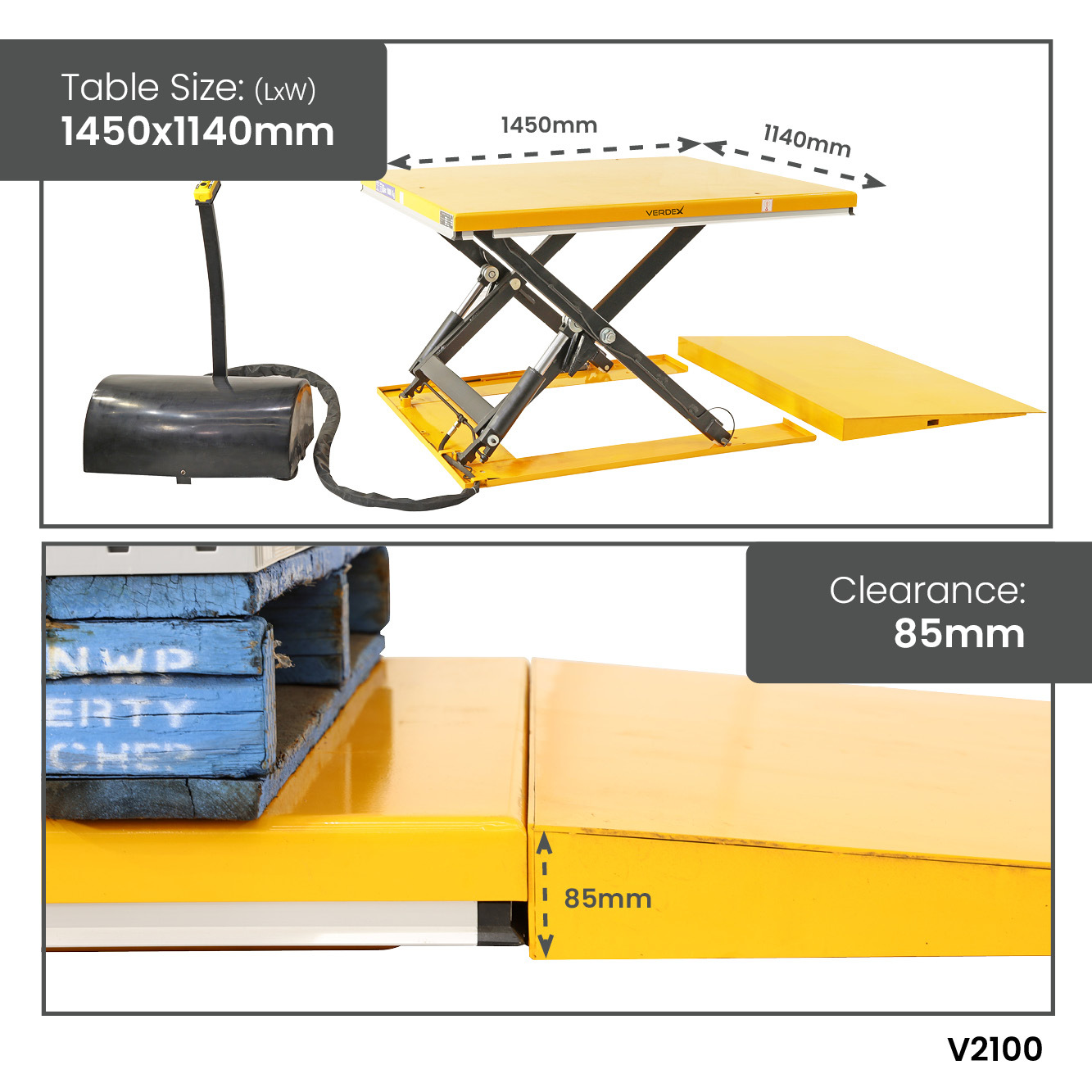

V2100 1000kg 1450x1140mm 85-860mm 20secs 357kg

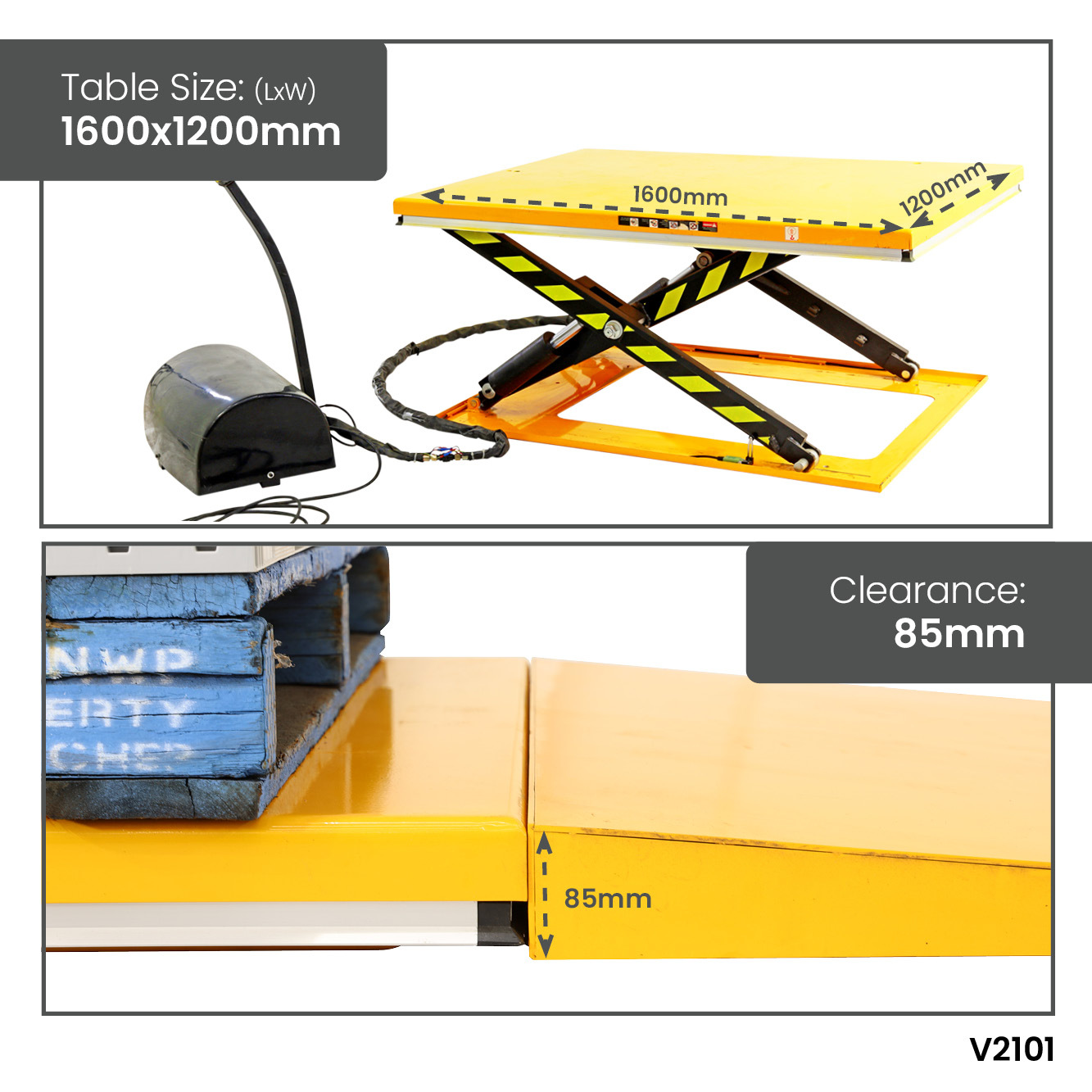

V2101 2000kg 1600x1200mm 105-870mm 20secs 419kg







Product Code See above table
Shipping Weight 220.0000kg
